708-1U-11524 Wa380-6 Wa430-6 Hydraulic Main Pump For Komatsu Wheel Loder Parts

Guangzhou Guoli Engineering Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 708-1U-11524 Wa380-6 Wa430-6 Hydraulic Main Pump For Komatsu Wheel Loder Parts from wholesalers

    Buy cheap 708-1U-11524 Wa380-6 Wa430-6 Hydraulic Main Pump For Komatsu Wheel Loder Parts from wholesalers
    • Buy cheap 708-1U-11524 Wa380-6 Wa430-6 Hydraulic Main Pump For Komatsu Wheel Loder Parts from wholesalers
    • Buy cheap 708-1U-11524 Wa380-6 Wa430-6 Hydraulic Main Pump For Komatsu Wheel Loder Parts from wholesalers

    708-1U-11524 Wa380-6 Wa430-6 Hydraulic Main Pump For Komatsu Wheel Loder Parts

    Ask Lasest Price
    Brand Name : Glparts
    Model Number : Wa380-6 Wa430-6 Wa380 Wa430
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T,Western Union,MoneyGram
    Supply Ability : 2000pieces/month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    708-1U-11524 Wa380-6 Wa430-6 Hydraulic Main Pump For Komatsu Wheel Loder Parts

    708-1U-11524 Wa380-6 Wa430-6 Hydraulic Main Pump For Komatsu Wheel Loder Parts


    Product Description


    Product NamWheel Loder Hydraulic Main Pump
    SpecificationWa380-6 Wa430-6 Wa380 Wa430
    Part Number708-1u-11524 708-1W-41522 708-1u-41522 708-1u-00163 708-1u-00161 708-1u-00162 708-1W-41570
    Structure TypeAxial Piston Pump
    Displacement RangeHigh displacement (Example: 50-400 cc/rev, model-specific)
    Pressure RangeHigh pressure (250-350 bar, peak up to 400 bar)
    CompatibilitySupports various hydraulic oils (mineral oil, synthetic oils), compliant with ISO viscosity grades

    If you are interested in the following pump models. Or do not know how to confirm your pump model, please contact us

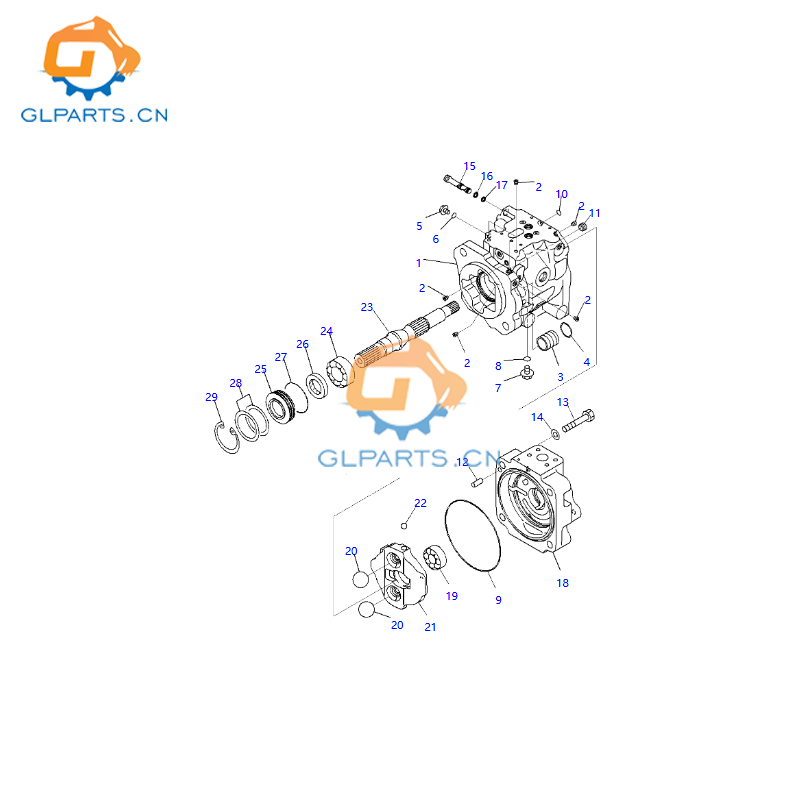

    List Of Pump Spare Parts


    PosPart NoParts name
    708-1U-00171Pump Assembly
    708-1U-00170Pump Assembly
    708-1U-01171Pump Subassembly
    708-1U-01170Pump Subassembly China
    708-1U-04210Case Assembly
    5708-8E-16160Plug
    607002-11023O-ring China
    707040-11409Plug
    807002-11423O-ring China
    9706-73-42370O-ring
    1007000-B1009O-ring China
    11708-1L-29340Orifice
    1204020-01024Pin, Dowel
    1301010-61470Bolt
    1401643-31445Washer, Flat
    14708-1W-03930Plug Kit China
    18708-1U-11524Cap, End China
    19708-1W-42120Bearing
    20708-1U-13461Ball, Retainer
    21708-1U-13470Cam, Rocker China
    2204260-01270Ball OEM
    23708-1W-42150Shaft China
    24708-1W-42110Bearing
    25708-1W-42140Case, Seal
    26708-1W-42130Seal, Oil
    2707000-B2060O-ring
    28708-1W-05821Spacer Kit
    2904065-06825Ring, Snap

    708-1U-11524 Wa380-6 Wa430-6 Hydraulic Main Pump For Komatsu Wheel Loder Parts

    Theory


    CategoryDescription
    Working PrincipleThe pistons move reciprocally within the cylinder block, and the swashplate angle changes the stroke volume to regulate oil intake and discharge.
    Energy ConversionMechanical Energy (input shaft rotation) → Hydraulic Energy (high-pressure oil output)
    Flow RegulationSwashplate angle adjustment → piston stroke variation → controlled flow output
    Pressure MaintenanceThe system’s relief valve sets the maximum pressure. The pump adjusts flow automatically through pressure compensation to maintain constant pressure.

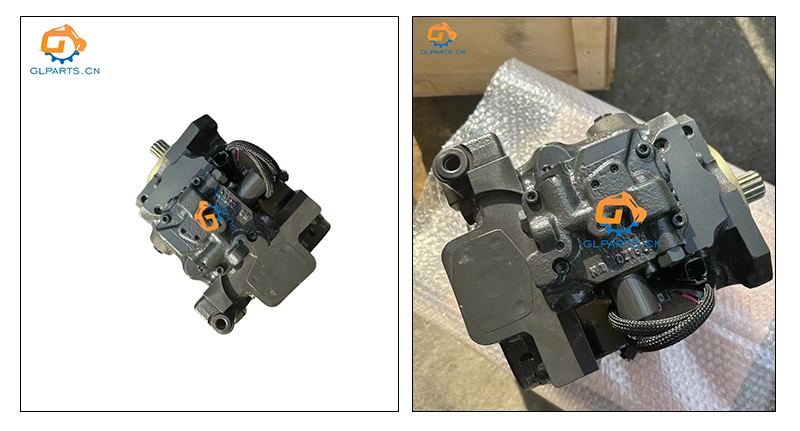

    Product Display

    708-1U-11524 Wa380-6 Wa430-6 Hydraulic Main Pump For Komatsu Wheel Loder Parts

    We also have others pump models


    PC30-1/2/3/6SK60-1/2/3/5/6EX55
    E180PC40-1/2/3/5SK100-1/2/3/5/6EX60-1/2/3/5/6
    E200BPC60-1/2/3/5/6/7SK120-1/2/3/5/6EX75
    E240/E240BPC70-7SK135-7EX90-1
    E300/E300BPC90-5SK200-1/2/3/5/6/6E/7EX100-1/2/3/5
    E307/E307BPC100-1/2/3/5/6SK210-7EX120-1/2/3/5/6
    E308BPC120-1/2/3/5/6SK230-6EX160-1
    E311BPC150-3/5SK220-6EX200-1/2/3/5/6
    E312/E312B/E312CPC200-1/2/3/5/6/7SK300-3/6EX210-5
    E318BPC220-1/2/3-N/3-O/5/6/7SK310-3EX220-1/2/3/5/6 EX270
    E320/E320B/C/DPC300-1/3/5/6SK320-3EX300-1/3/5/6
    E325/325B/C/DPC400-1/3/5/6SK350EX400-1/2/3/5/6
    E330/E330B/C/DPC450-6SK450ZX70/120/200/330/450
    S55R60-7SH60HD250SE-2/DH250-5/7
    DH55-5R130-5/7SH75HD400SEN2/HD400-5/7
    DH220-2/3/5R200SH100HD450-5/7
    DH225-7R200-5SH120-1/2/3/5HD510
    DH280-3R210-3/5/7SH200-1/A3HD512
    DH320/DH320-2/3R215-7SH220HD550-5/7
    DH450R220-5/7SH300-2HD700-2/5/7
    DH130-7R260-5S320-2/3HD770-1/2
    DH280R290-3/7S450HD800-5
    S225-7R320HD122OSE-2/HD1220-5/7HD820-1/2/3
    S280-3R420HD1430HD900-5/7
    S320R450-3/5HD1023
