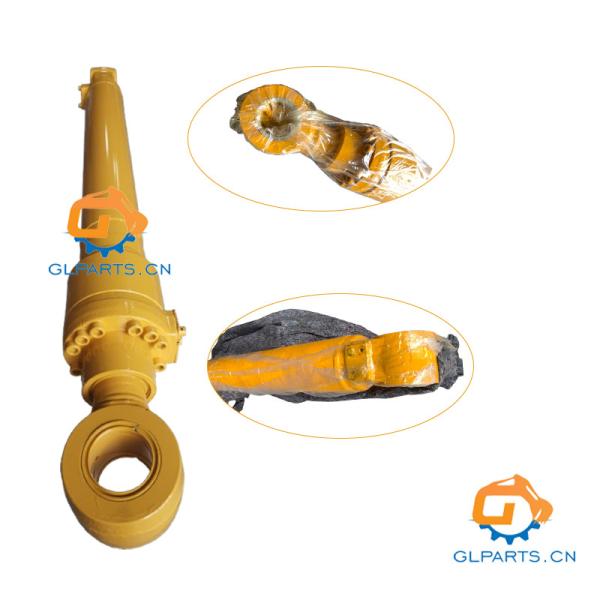

Hyundai R290LC-7 Arm Cylinder 31N8-50138 31N8-50130 Excavator Hydraulic Parts
Product Description
| Product Name | Excavator Hydraulic Bucket Cylinder |
| Model | R290LC-9 |
| Temperature Range | -30-100°C |
| Part Number
|
31N8-50138 31N8-50130 |
| Pressure Range | 21 MPa to 35 MPa |
| Dimensions | Customized |
| OEM
| Yes |
List Of Spare Parts
31N8-50138
| Pos. | Part No | Part Name | Comments |
| * | 31N8-50137 | ARM CYLINDER ASSY |
|
| * | 31N8-50138 | ARM CYLINDER ASSY |
|
| * | 31N8-52137 | ARM CYLINDER ASSY | SAFETY LOCK |
| N*-1 | 31Y1-14906 | ARM CYL SUB ASSY | WITHOUT PIPE |
| N*-1 | 31Y1-14907 | ARM CYL SUB ASSY | WITHOUT PIPE |
| 1 | 31Y1-14916 | TUBE ASSY |
|
| 2 | 31Y1-14965 | ROD ASSY |
|
| 2 | 31Y1-14966 | ROD ASSY |
|
| N2-1 | @ | SPEAR-CUSHION |
|
| N2-2 | @ | VALVE-CHECK |
|
| N2-3 | @ | SPRING-COIL |
|
| N2-4 | @ | RING-STOP |
|
| N3 | 31Y1-14995 | GLAND |
|
| 4 | S732-110045 | BUSHING-DD2 |
|
| 5 | Y191-117000 | RING-SNAP |
|
| K6 | Y220-110011 | SEAL-ROD |
|
| K7 | Y180-110020 | RING-BACK UP |
|
| K8 | Y240-110013 | RING-BUFFER |
|
| K9 | Y110-110011 | WIPER-DUST |
|
| 10 | Y190-126000 | RING-SNAP |
|
| K11 | S631-140004 | O-RING |
|
| K11 | 31YC-99H70 | O-RING |
|
| K12 | 31YC-BP140 | RING-BACK UP |
|
| K12 | 31YC-CP140 | RING-BACK UP |
|
| 13 | 31YC-26100 | RING-CUSHION |
|
| 14 | 31Y1-15005 | PISTON |
|
| 14 | 31Y1-15006 | PISTON |
|
| K15 | Y420-150000 | SEAL-PISTON |
|
| K16 | Y310-150003 | RING-WEAR |
|
| K17 | Y440-150002 | RING-DUST |
|
| K18 | S632-085004 | O-RING |
|
| K19 | S642-085003 | RING-BACK UP |
|
| K19 | 31YC-CG085 | RING-BACK UP |
|
| 20 | 31YC-64070 | NUT-LOCK |
|
| 20 | 31YC-68060 | NUT-LOCK |
|
| 22 | S114-100164 | SCREW-SET |
|
| 23 | S109-200904 | BOLT-SOCKET |
|
| 24 | 31YC-11161 | BUSHING-PIN |
|
| 25 | Y000-090000 | SEAL-DUST |
|
| 26 | 31YC-2A070 | VALVE-CHECK |
|
| 27 | 31YC-99071 | SPRING-COIL |
|
| K27 | S631-014004 | O-RING |
|
| 28 | P220-110103 | PLUG-HEX,HEAD |
|
| 29 | 31Y1-15015 | BAND ASSY-R |
|
| 29-1 | 31Y1-15050 | BAND SUB ASSY |
|
| 29-2 | 31YC-31420 | BAND |
|
| 29-3 | S015-120452 | BOLT-HEX |
|
| 29-4 | S411-120002 | WASHER-SPRING |
|
| 29-5 | 31YC-37040 | CLAMP-PIPE |
|
| 29-6 | S015-120402 | BOLT-HEX |
|
| 29-7 | S411-120002 | WASHER-SPRING |
|
| 30 | 31Y1-21926 | BAND ASSY-B |
|
| 30-1 | 31Y1-21935 | BAND SUB ASSY |
|
| 30-2 | 31YC-32280 | BAND |
|
| 30-3 | S015-120452 | BOLT-HEX |
|
| 30-4 | S411-120002 | WASHER-SPRING |
|
| 30-5 | S071-023430 | U-BOLT |
|
| 30-6 | S201-101002 | NUT-HEX |
|
| 30-7 | S411-100002 | WASHER-SPRING |
|
| 31 | 31Y1-15026 | PIPE ASSY-R |
|
| K33 | Y171-024004 | O-RING |
|
| 34 | S107-120554 | BOLT-SOCKET |
|
| K37 | S632-145001 | O-RING |
|
| K | 31Y1-15046 | SEAL KIT | STD, SEE ILLUST |
| K | 31Y1-15047 | SEAL KIT | STD, SEE ILLUST |
| K | 31Y1-18256 | SEAL KIT | SEE 3540 |
| K | 31Y1-18257 | SEAL KIT |
|
| N | @ | NOT INDIVIDUALLY SUPPLIED |
|
31N8-50130
| Pos. | Part No | Qty | Part Name | Comments |
| * | 31N8-50130 | 1 | ARM CYLINDER |
|
| * | 31N8-52130 | 1 | ARM CYLINDER ASSY | SAFETY LOCK |
| *-1 | 31Y1-14900 | 1 | ARM CYLINDER SUB | WITHOUT PIPE |
| 1 | 31Y1-14910 | 1 | TUBE ASSY |
|
| 2 | 31Y1-14960 | 1 | ROD ASSY |
|
| N20 | @ | 1 | SPEAR-CUSHION |
|
| N21 | @ | 1 | VALVE-CHECK |
|
| N22 | @ | 1 | SPRING-COIL |
|
| N23 | @ | 1 | RING-STOP |
|
| N3 | 31Y1-14990 | 1 | GLAND |
|
| 4 | S732-110045 | 1 | BUSHING-DD2 |
|
| 5 | Y191-117000 | 1 | RING-SNAP |
|
| K6 | Y220-110011 | 1 | SEAL-ROD |
|
| K7 | Y180-110020 | 1 | RING-BACK UP |
|
| K8 | Y240-110013 | 1 | RING-BUFFER |
|
| K9 | Y110-110011 | 1 | WIPER-DUST |
|
| 10 | Y190-126000 | 1 | RING-SNAP |
|
| K11 | S631-140004 | 1 | O-RING |
|
| K12 | S641-140003 | 1 | RING-BACK UP |
|
| 13 | 31YC-23050 | 1 | RING-CUSHION |
|
| 14 | 31Y1-15000 | 1 | PISTON |
|
| K15 | S632-095004 | 1 | O-RING |
|
| K16 | S642-095003 | 2 | RING-BACK UP |
|
| K17 | Y420-150000 | 1 | SEAL-PISTON |
|
| K18 | Y310-150003 | 2 | RING-WEAR |
|
| K19 | Y440-150002 | 2 | RING-DUST |
|
| 24 | 31YC-66080 | 1 | WASHER-LOCK |
|
| 24 | 31YC-66081 | 1 | WASHER-LOCK |
|
| 25 | 31YC-61142 | 1 | NUT-LOCK |
|
| 25 | 31YC-61143 | 1 | NUT-LOCK |
|
| 26 | S109-200904 | 12 | BOLT-SOCKET |
|
| 33 | 31YC-11161 | 2 | BUSHING-PIN |
|
| 34 | Y000-090000 | 4 | SEAL-DUST |
|
| 27 | 31Y1-15010 | 2 | BAND ASSY |
|
| 27 | 31Y1-15010 | 1 | BAND ASSY |
|
| 27-1 | 31Y1-15050 | 1 | BAND SUB ASSY |
|
| 27-2 | 31YC-31420 | 1 | BAND |
|
| 27-3 | S015-120452 | 2 | BOLT-HEX |
|
| 27-4 | S411-120002 | 2 | WASHER-SPRING |
|
| 27-5 | 31YC-37040 | 1 | CLAMP-PIPE |
|
| 27-6 | S015-120402 | 2 | BOLT-HEX |
|
| 27-7 | S411-120002 | 2 | WASHER-SPRING |
|
| 28 | 31Y1-15020 | 1 | PIPE ASSY-R |
|
| 29 | 31Y1-15030 | 1 | PIPE ASSY-B |
|
| K30 | Y171-024004 | 2 | O-RING |
|
| 31 | S107-120554 | 4 | BOLT-SOCKET |
|
| 32 | S107-100554 | 4 | BOLT-SOCKET |
|
| 35 | 31Y1-21920 | 1 | BAND ASSY-B |
|
| 35-1 | 31Y1-21930 | 1 | BAND SUB ASSY |
|
| 35-2 | 31YC-32240 | 1 | BAND |
|
| 35-3 | S015-120452 | 1 | BOLT-HEX |
|
| 35-4 | S411-120002 | 1 | WASHER-SPRING |
|
| 35-5 | S071-023430 | 2 | U-BOLT |
|
| 35-6 | S201-101002 | 4 | NUT-HEX |
|
| 35-7 | S411-100002 | 4 | WASHER-SPRING |
|
| K | 31Y1-15040 | 1 | SEAL KIT | STD, SEE ILLUST |
| K | 31Y1-18250 | 1 | SEAL KIT | SEE 3540 |
| N | @ | 1 | @ |
|
*Note:Suitable for different models. Please contact us for the specific part number,part number information is being updated
