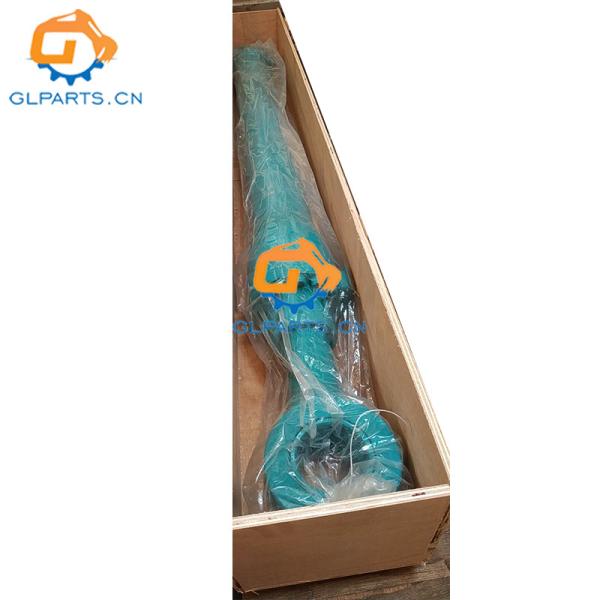

SK135 SK135SR Hydraulic Boom Cylinder YY01V00001F1 YY01V00002F1 For Kobelco

Ask Lasest Price
Brand Name :	Glparts
Model Number :	SK135 SK135SR
Certification :	ISO9001
Price :	Negotiation
Payment Terms :	T/T,Western Union,MoneyGram
Supply Ability :	2000pieces/month
Delivery Time :	7 Days

Add to Cart

Product Details
Company Profile

SK135 SK135SR Hydraulic Boom Cylinder YY01V00001F1 YY01V00002F1 For Kobelco

SK135 SK135SR Hydraulic Boom Cylinder YY01V00001F1 YY01V00002F1 Arm Bucket Cylinder For Kobelco

Product Description

Product Name	Excavator Hydraulic Bucket Cylinder,Boom Cylinder,Stick Cylinder
Model	SK135 SK135SR
Part Number Of SK60 Hydraulic Cylinder Bucket Cylinder	YY01V00001F1 YY01V00002F1 YX01V00008F1 YY01V00009F1 YX42H00007F1
Compatible With Other Machinery Models	SK135SR SK135SRLC-1E SK135SR-1E SK115SRDZ-1E ED150 SK115SRDZ SK135SRL ED150-1E SK135SRL-1E SK135SRLC
Temperature Range	-20-80°C
Pressure Range	21 MPa to 35 MPa
Dimensions	Customized
OEM	Yes

Service Stage	Details
PreSales Service	Free consultation and technical advice
PreSales Service	Customization options for dimensions and performance based on customer requirements
InSales Service	Fast production and delivery times
InSales Service	Real-time updates on manufacturing and shipment status
AfterSales Service	Warranty on manufacturing defects
AfterSales Service	Technical support for installation and maintenance

ps.If you are looking for other hydraulic cylinders for the SK135 SK135SR, please contact us for a quote

List Of Spare Parts

Pos	Part No	Qty	Parts name	Comments
1	YY01V00001F1	[1]	CYLINDER ASSY	KOB Superseded by part number: YY01V00002F2
2	YY01V00002F1	[1]	CYLINDER ASSY	KOB BOOM (L. H) Superseded by part number: YY01V00002F2
3	YX01V00008F1	[1]	CYLINDER	KOB ASSY, OFFSET Superseded by part number: YX01V00008F2
4	YY01V00009F1	[1]	CYLINDER	KOB ARM Superseded by part number: YY01V00009F2
	YX42H00007F1	[1]	HYD, CYLINDER
A1	YX42H01051P1	[1]	TUBE	KOB
A2	YX42H01052P1	[1]	TUBE	KOB
A3	YX42H01061D1	[2]	HOSE	KOB
A4	ZC26X22011	[1]	CLAMP	KOB Single Line -- 38x29x65mm Long
A5	ZS18C10050	[1]	SCREW,Hex, M10 x 50mm	KOB M10x1.50x50mm
A6	ZS28C10030	[8]	SCREW,Hex Socket Head, M10 x 30mm	KOB M10x1.50x30mm
A7	ZW26X10000	[1]	LOCK WASHER	KOB ID 10 x OD 18 x Th 2.5mm
A8	ZH22Z04000	[1]	HYD CONNECTOR	KOB 1/4"PTx1/4"PFx37mm Long
A9	ZD12A01600	[8]	O-RING	KOB ID 15.60 ± 0.12 x OD 19.16mm
A10	ZD12P02600	[2]	O-RING	KOB ID 25.70 ± 0.26 x OD 32mm
A11	ZG91S02000	[1]	LUBE NIPPLE,1/8" NPT x 1/8" NPT	KOB 1/8" PT -- Straight
	YY42H00029F1	[1]	HYD, CYLINDER
B1	YX42H01034P1	[1]	TUBE	KOB
B2	YY42H01132P1	[1]	TUBE	KOB
B3	YX42H01062D1	[1]	HOSE	KOB
B4	YX42H01063D1	[1]	HOSE	KOB
B5	ZD12A01600	[1]	O-RING	KOB ID 15.60 ± 0.12 x OD 19.16mm
B6	ZD12A01800	[1]	O-RING,1.78mm Thk x 18.77mm ID, Cl 6	KOB ID 18.77 ± 0.12 x OD 22.33mm
B7	ZD12P02600	[2]	O-RING	KOB ID 25.70 ± 0.26 x OD 32mm
B8	ZC26X22011	[1]	CLAMP	KOB Single Line -- 38x29x65mm Long
B9	ZC26X28014	[1]	CLAMP	KOB Single Line -- 75x37x38mm (Ø28mm)
B10	ZS18C10045	[1]	SCREW,Hex, M10 x 45mm	KOB M10x1.50x45mm
B11	ZS18C12055	[1]	SCREW,Hex, M12 x 55mm	KOB M12x1.75x55mm
B12	ZS28C10030	[4]	SCREW,Hex Socket Head, M10 x 30mm	KOB M10x1.50x30mm
B13	ZS28C10070	[4]	SCREW,Hex Socket Head, M10 x 70mm	KOB M10x1.50x70mm
B14	ZW26X10000	[1]	LOCK WASHER	KOB ID 10 x OD 18 x Th 2.5mm
B15	ZW26X12000	[1]	LOCK WASHER	KOB ID 12 x OD 21 x Th 3.0mm
B16	ZG91S02000	[3]	LUBE NIPPLE,1/8" NPT x 1/8" NPT	KOB 1/8" PT -- Straight
	YY42H00003F1	[1]	LINE	KOB HYD, CYLINDER
C1	YY42H01009P1	[1]	TUBE	KOB
C2	YY42H01010P1	[1]	TUBE	KOB
C3	YY42H01011P1	[1]	TUBE	KOB
C4	YY42H01012P1	[1]	TUBE	KOB
C5	ZX20H10074	[4]	HOSE	KOB 740mm Long (29-1/8 in)
C6	2432T2244	[2]	CLAMP	KOB Double -- 102x32x12mm (Ø23xØ23mm)
C7	ZS18C10055	[2]	SCREW,Hex, M10 x 55mm	KOB M10x1.50x55mm
C8	ZS28C10030	[16]	SCREW,Hex Socket Head, M10 x 30mm	KOB M10x1.50x30mm
C9	ZW26X10000	[2]	LOCK WASHER	KOB ID 10 x OD 18 x Th 2.5mm
C10	ZH22Z04000	[2]	HYD CONNECTOR	KOB 1/4"PTx1/4"PFx37mm Long
C11	ZG91S02000	[2]	LUBE NIPPLE,1/8" NPT x 1/8" NPT	KOB 1/8" PT -- Straight
C12	ZD12A01600	[4]	O-RING	KOB ID 15.60 ± 0.12 x OD 19.16mm
C13	ZD12P02600	[4]	O-RING	KOB ID 25.70 ± 0.26 x OD 32mm
	YX02B00003F1	[1]	INSTAL
D1	YX02B01004P1	[2]	PIN	KOB PIN
D2	ZS18C10016	[2]	SCREW,Hex, M10 x 16mm	KOB M10x1.50x16mm
D3	ZW26X10000	[2]	LOCK WASHER	KOB ID 10 x OD 18 x Th 2.5mm
D4	2418T18152D7	[2]	SPACER	KOB
D5	YN12B01009P1	[4]	SHIM,3mm Thk	KOB (3.0)
D6	B16T0442D57	[2]	SHIM,72mm ID x 130mm OD x 0.5mm Thk	KOB ID 72 x OD 130 x Th 0.5mm
D7	B16T0442D44	[2]	SHIM,72mm ID x 130mm OD x 0.9mm Thk	KOB ID 72 x OD 130 x Th 0.9mm
D8	B16T0442D1	[2]	SHIM,130mm OD x 72mm ID x 1.2mm Thk	KOB ID 72 x OD 130 x Th 1.2mm
	YX02B00010F1	[1]	INSTAL
E1	YX02B01039P1	[2]	PIN	KOB
E2	ZS83C16020	[2]	SCREW	KOB Set -- M16x2.0x20mm
E3	ZS28C16030	[2]	SCREW,Hex Socket Head, M16 x 30mm	KOB M16x2.0x30mm
E4	ZW26K16000	[2]	LOCK WASHER	KOB ID 16 x OD 24 x Th 3.5mm
E5	PW12B01242P1	[2]	WASHER	KOB
E6	YX02B01018P1	[2]	SHIM	KOB (2.0)
E7	B16T0442D79	[2]	SHIM,130mm OD x 82mm ID x 0.5mm Thk	KOB ID 82 x OD 130 x Th 0.5mm
	YY02B00005F1	[1]	CYLINDER	KOB INSTAL
F1	LP02B01053P1	[1]	PIN	KOB
F2	YV02B01011P1	[2]	PIN	KOB
F3	LP02B01054P1	[2]	COLLAR	KOB
F4	HS18C14135G1	[2]	SCREW	KOB Superseded by part number: HS18C14135G2
F5	ZS18C10020	[2]	SCREW,Hex, M10 x 20mm	KOB M10x1.50x20mm
F6	2418T21137	[2]	WASHER	KOB
F7	ZW26X10000	[2]	LOCK WASHER	KOB ID 10 x OD 18 x Th 2.5mm
F8	ZN18C14011	[4]	NUT	KOB M14x2.0mm
F9	LP02B01055P1	[2]	SHIM,3.0mm Thk	KOB (3.0)
F10	LP02B01060D1	[2]	SHIM	KOB ID 82 x OD 110 x Th 0.5mm
F11	LP02B01060D2	[2]	SHIM	KOB ID 82 x OD 110 x Th 0.9mm
F12	LP02B01060D3	[2]	SHIM	KOB ID 82 x OD 110 x Th 1.2mm
F13	LP02B01060D4	[2]	SHIM	KOB ID 82 x OD 110 x Th 1.6mm
F14	B16T0442D57	[2]	SHIM,72mm ID x 130mm OD x 0.5mm Thk	KOB ID 72 x OD 130 x Th 0.5mm
F15	B16T0442D44	[2]	SHIM,72mm ID x 130mm OD x 0.9mm Thk	KOB ID 72 x OD 130 x Th 0.9mm
F16	B16T0442D1	[2]	SHIM,130mm OD x 72mm ID x 1.2mm Thk	KOB ID 72 x OD 130 x Th 1.2mm
F17	B16T0442D2	[2]	SHIM,130mm OD x 72mm ID x 1.6mm Thk	KOB ID 72 x OD 130 x Th 1.6mm
F18	B16T0442D5	[2]	SHIM,130mm OD x 72mm ID x 2.3mm Thk	KOB ID 72 x OD 130 x Th 2.3mm

SK135 SK135SR Hydraulic Boom Cylinder YY01V00001F1 YY01V00002F1 For Kobelco

* If you need other cylinder assemblies or cylinder spare parts, feel free to send us an inquiry, and we will respond to your request immediately

Company Information

GuangZhou GuoLi Engineering Machinery Co., Ltd., with over 16 years of experience in excavator hydraulic cylinders, is a foreign trade company specializing in a wide range of products, including crawler excavator arm cylinders, boom cylinders, bucket cylinders, cylinder tubes, cylinder rods, custom hydraulic cylinders, seal kits, hydraulic pumps, and electric parts, all designed for various excavator models. Our products have been exported to over 100 countries and regions worldwide.

Factory Tour

Our main product, excavator cylinders, is produced through a complete hydraulic cylinder production line, from design to manufacturing. With over ten years of experience, we’ve upgraded our offerings to multi-stage hydraulic cylinders. We focus on cylinder customization and produce a variety of domestic and imported excavator cylinders. Using advanced CNC lathes, grinders, and assembly equipment, we strictly follow ISO quality standards throughout production.

SK135 SK135SR Hydraulic Boom Cylinder YY01V00001F1 YY01V00002F1 For Kobelco

Piston Rod Production Process

Feature	Description
Material	Tempered steel
Surface Treatment	Induction hardened before chrome plating to prevent bending and scratching
Rust Resistance	Resists rust for over 100 hours in salt spray tests
Production Process	Produced and electroplated in-house
Finish	Mirror finish technology

SK135 SK135SR Hydraulic Boom Cylinder YY01V00001F1 YY01V00002F1 For Kobelco

Automatic Welding Process

Feature	Description
Welding Method	Fully automated welding for consistency and integrity
Craftsmanship	Lean welding craft ensures strong joint strength and eliminates defects
Weld Seam Quality	Weld seam matches the appearance of original parts
Durability	Welded parts are not easy to fall off

SK135 SK135SR Hydraulic Boom Cylinder YY01V00001F1 YY01V00002F1 For Kobelco

Finished Product Warehouse Display

SK135 SK135SR Hydraulic Boom Cylinder YY01V00001F1 YY01V00002F1 For Kobelco

Exhibition Showcase

Our Presence at Major Exhibitions: 2023 Malaysia & 2024 Shanghai Bauma

Exhibition With Cooperated Clients

SK135 SK135SR Hydraulic Boom Cylinder YY01V00001F1 YY01V00002F1 For Kobelco

Certificates

Certification

SK135 SK135SR Hydraulic Boom Cylinder YY01V00001F1 YY01V00002F1 For Kobelco

FAQ

1.How can I be sure the part will fit my excavator ?

Give us correct model number /machine serial number /any numbers on the parts itself.
Or measure the parts give us dimension or drawing.

2.What material do you use on hydraulic cylinder?

High frequency quenching No.40 manganese steel as rod material so the cylinder rod has better bending resistance.
No.25 manganese steel as tube material ,so the tube has better wear resistance,

High-strength hardened steel as rod head and tube head ,so the cylinder head and rod head more durable.
Name-brand seal kits to reduce the hydraulic cylinder oil leakage rate.

3.How long can an order delivery?

For some often used models of excavator hydraulic cylinder , we have in stock, within 7 days .
For any order less than one container takes about 2 weeks to finish; Order of 1-2 container takes 4 -6weeks.
At busy manufacturing season, manufacturing time needs more which can confirm by discussion.

4.How to pay?

Order less than 3000USD, full payment at order, Order over USD3000 value ,50% deposited in to start,

50% balance paid to deliver,inspection service accepted.
For customized order, 70%payment as deposit ,30% balance paid to deliver.

5.How to delivery?

If you have shipping agent ,we will cooperate with your agent to arrange shipment .
If not , we have good relationships with shipping companies, express suppliers.
For light goods ,by UPS/DHL/TNT(DAP terms) , For heavy goods ,by sea (FOB,CIF,CFR)
